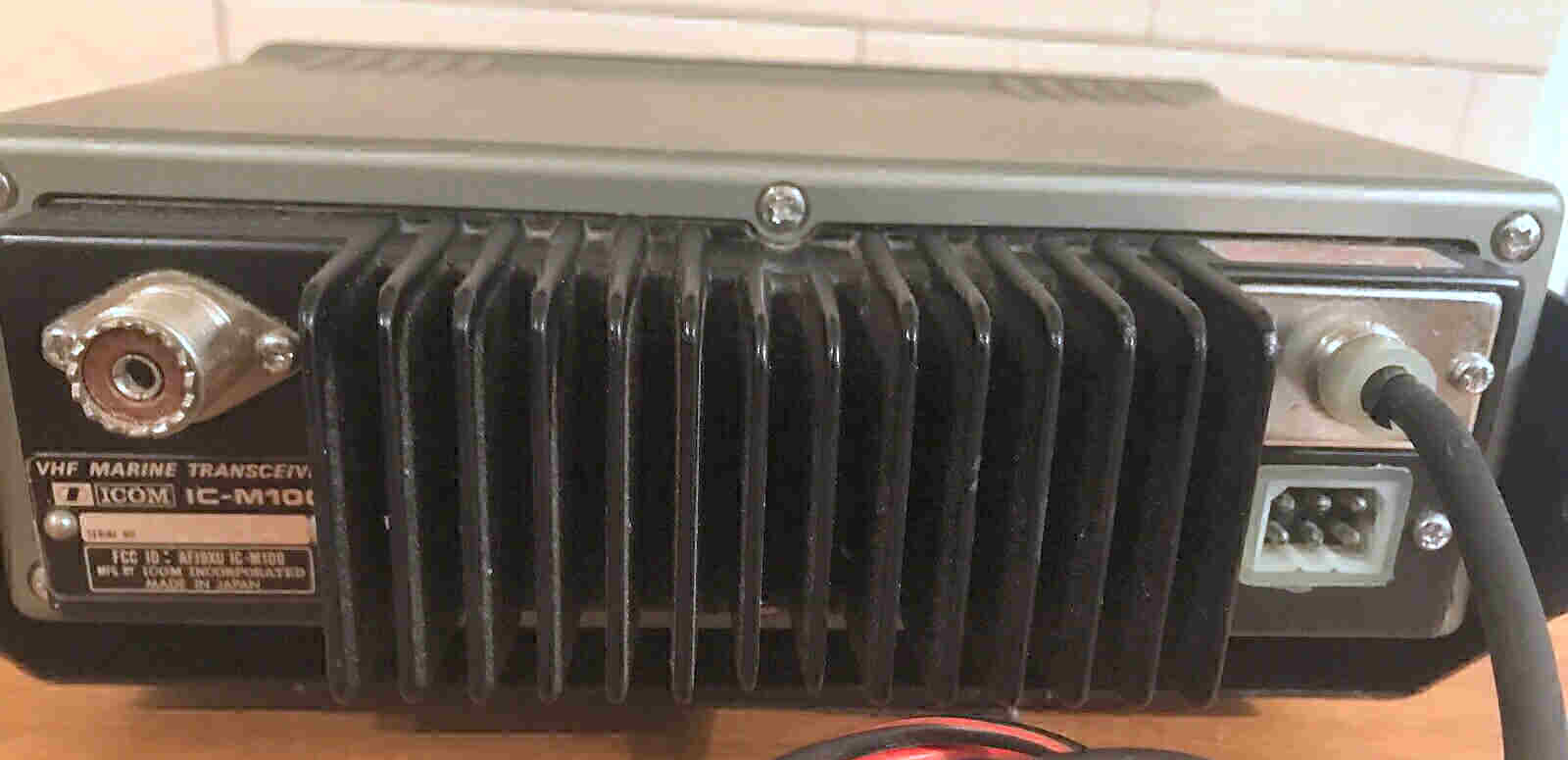

Icom IC-M100
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
TX: 156.000-157.500 MHz
RX: 156.000-163.000 MHz |
| Modes: |
FM |
| RF Power Output: |
Hi: 25 W, Lo: 1 W |
| Memory Channels: |
16 + 10 Weather |
| Search Banks: |
N/A |
| Priority Channels: |
N/A |
| Scan Speed: |
N/A |
| Search Speed: |
N/A |
| Increment Steps: |
25 kHz |
| Scan Delay: |
N/A |
| Voltage: |
13.8V DC |
| Current Drain: |
Max: 6.3A |
| Aerial Input: |
50 ohms, SO239 |
| Dimensions (W*H*D): |
228(W) x 78(H) x 208(D) mm |
| Weight: |
2.1 Kg |
| Manufactured: |
Japan: 19xx-19xx |
| Other: |
All USA & International Channels |
| Related Documents: |
Manual (3.9 MB) |
 |
